ABSTRACT

Name badges for Haven Tashkent, made as PCBs: lime-green HACKER for participants and brown ORGANIZER for the team. They're die-cut to the shape of the art, 55.9 × 59.1 mm, with a gold (ENIG) finish and a full-colour print on the front. PCBWay is sponsoring the manufacturing.

HACKER and ORGANIZER badge fronts

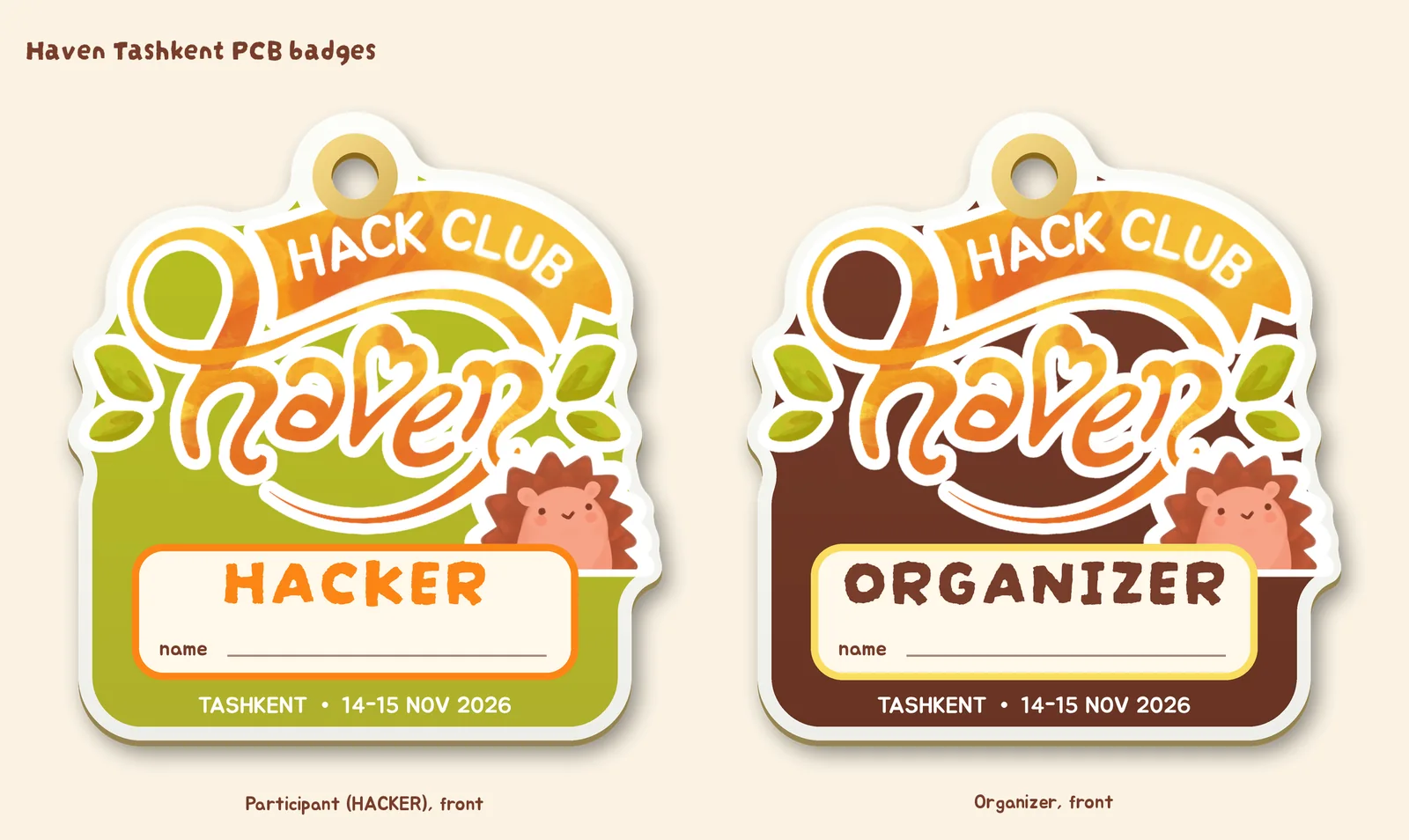

Figure 1.Both fronts, as mock-ups

1Key Specifications

Size
55.9 × 59.1 mm, die-cut outline
Board
2 layers, ENIG gold
Front
Full-colour UV print
Tools
KiCad 10, Python (numpy, OpenCV, Pillow)
Made by
PCBWay (sponsor)

2Functional Block Diagram

  1. numbersdesign.py
  2. artnumpy, OpenCV, Pillow
  3. boardKiCad 10
  4. fabPCBWay, ENIG, UV print
  5. resultHACKER / ORGANIZER
Figure 2.How Haven PCB badges works, left to right

3How it's made

One Python generator draws every layer from a single file of numbers: the board outline, the copper and mask art that gets imported into KiCad, the colour-print files PCBWay needs, and these mock-ups. If the outline changes by a millimetre, I change one number and regenerate everything instead of redrawing it.

4Pictures

HACKER badge front

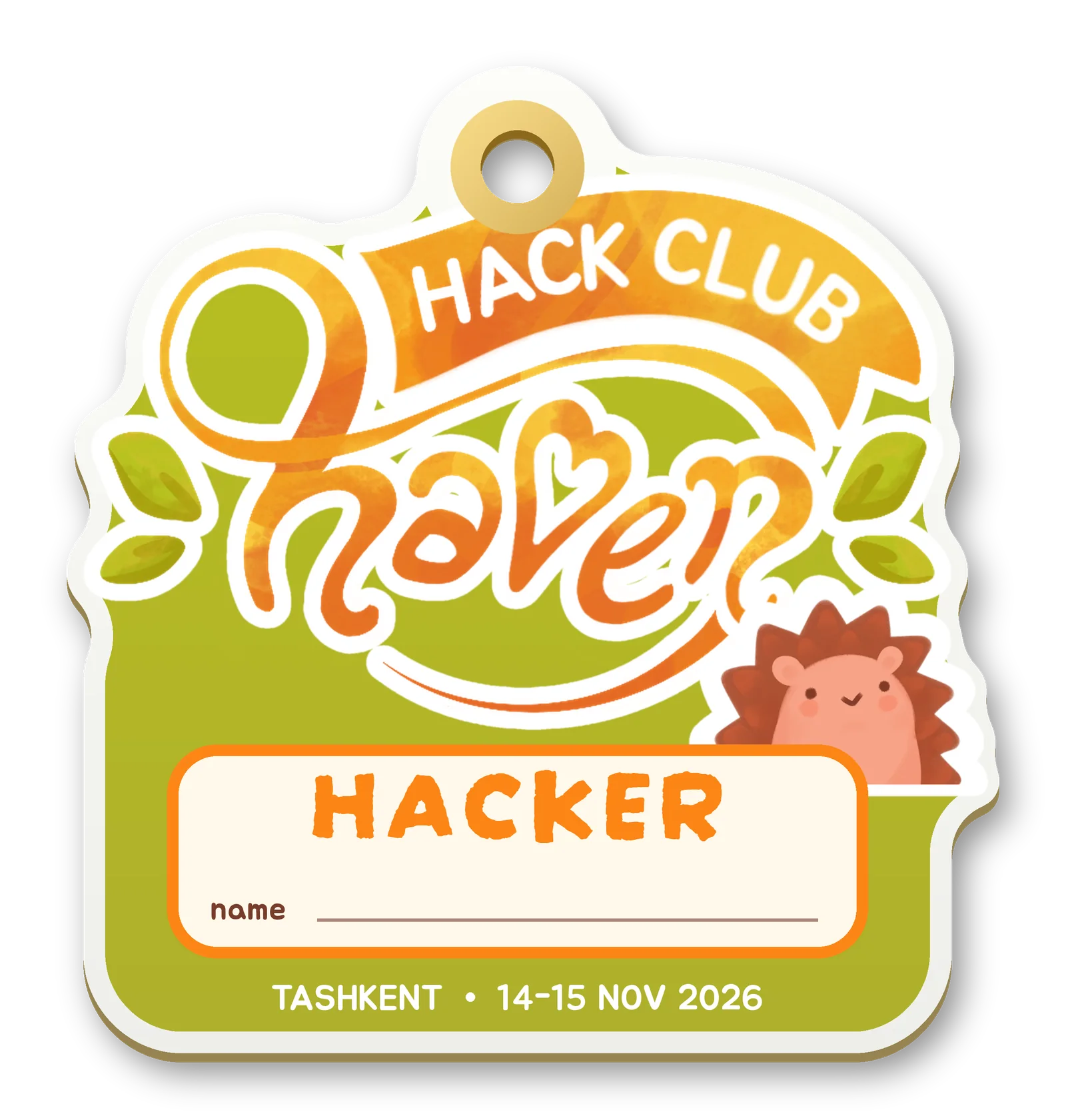

Figure 3.HACKER, front
ORGANIZER badge front

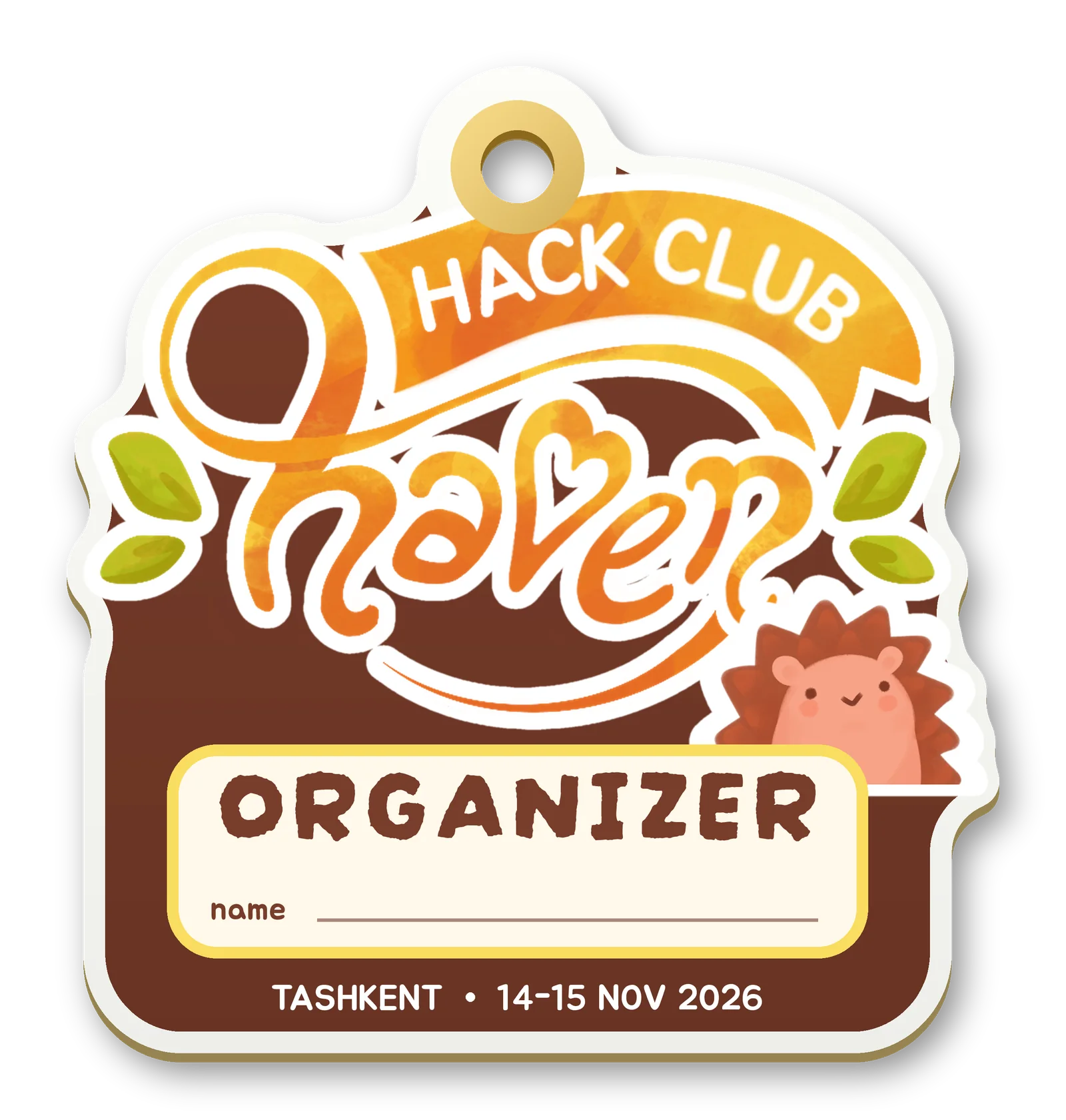

Figure 4.ORGANIZER, front

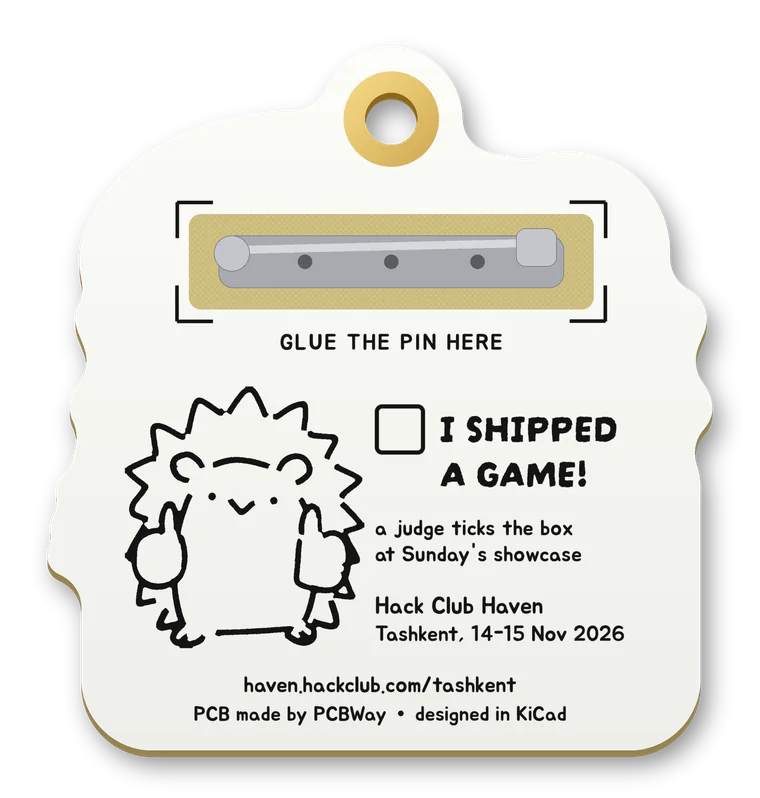

HACKER badge back with pin

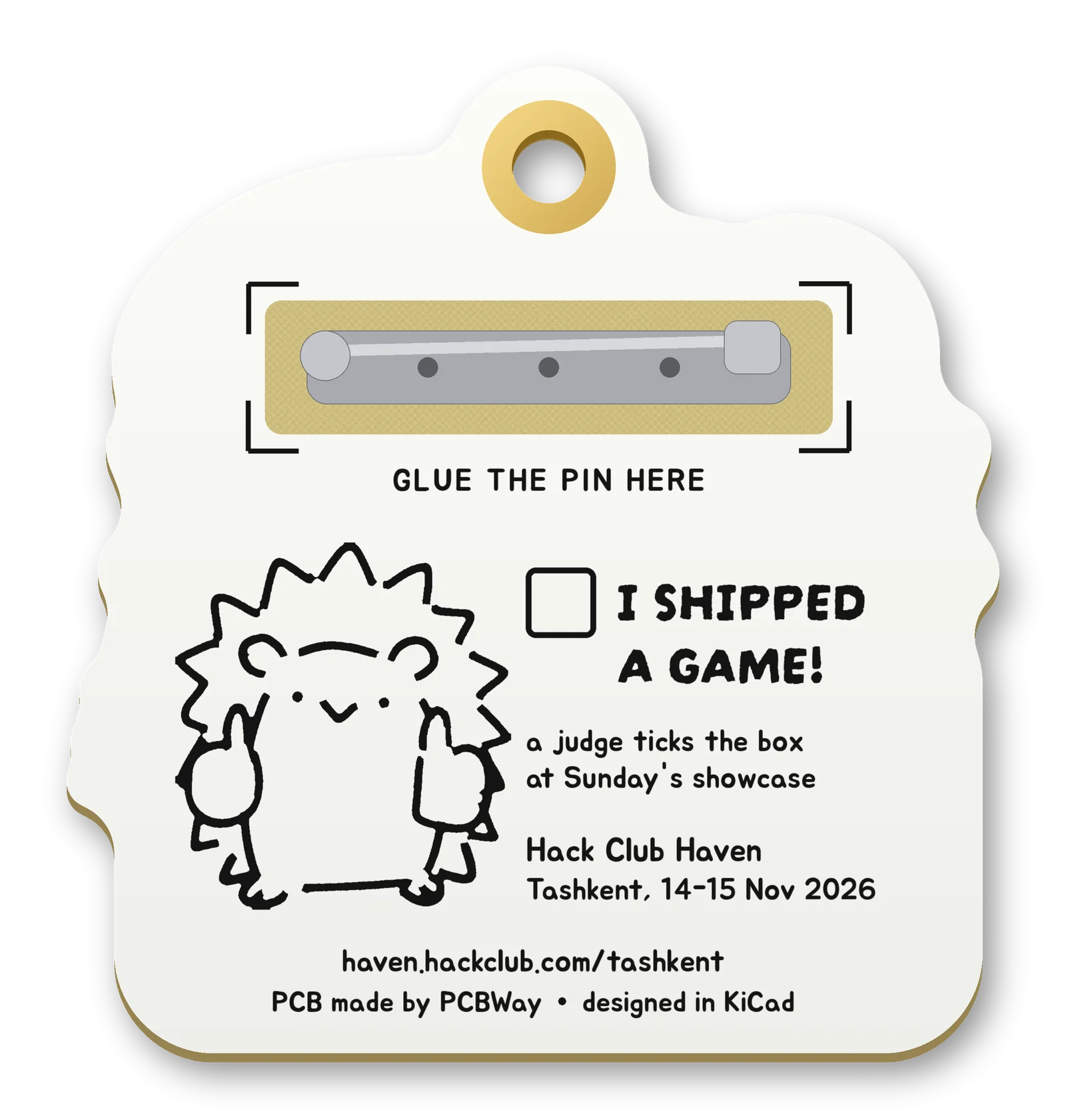

Figure 5.Back, with the pin
ORGANIZER badge back with pin

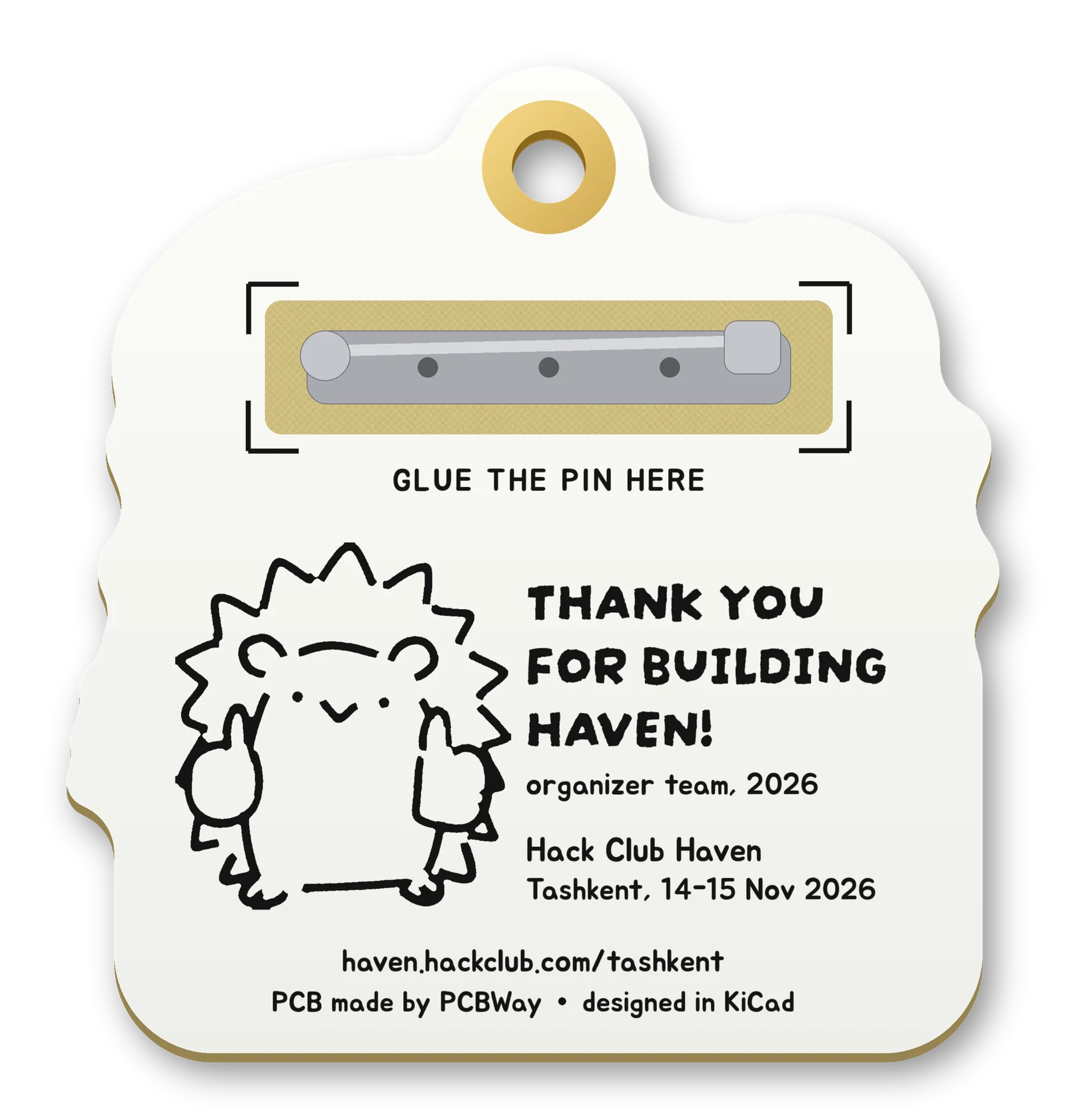

Figure 6.Organizer back
Both backs

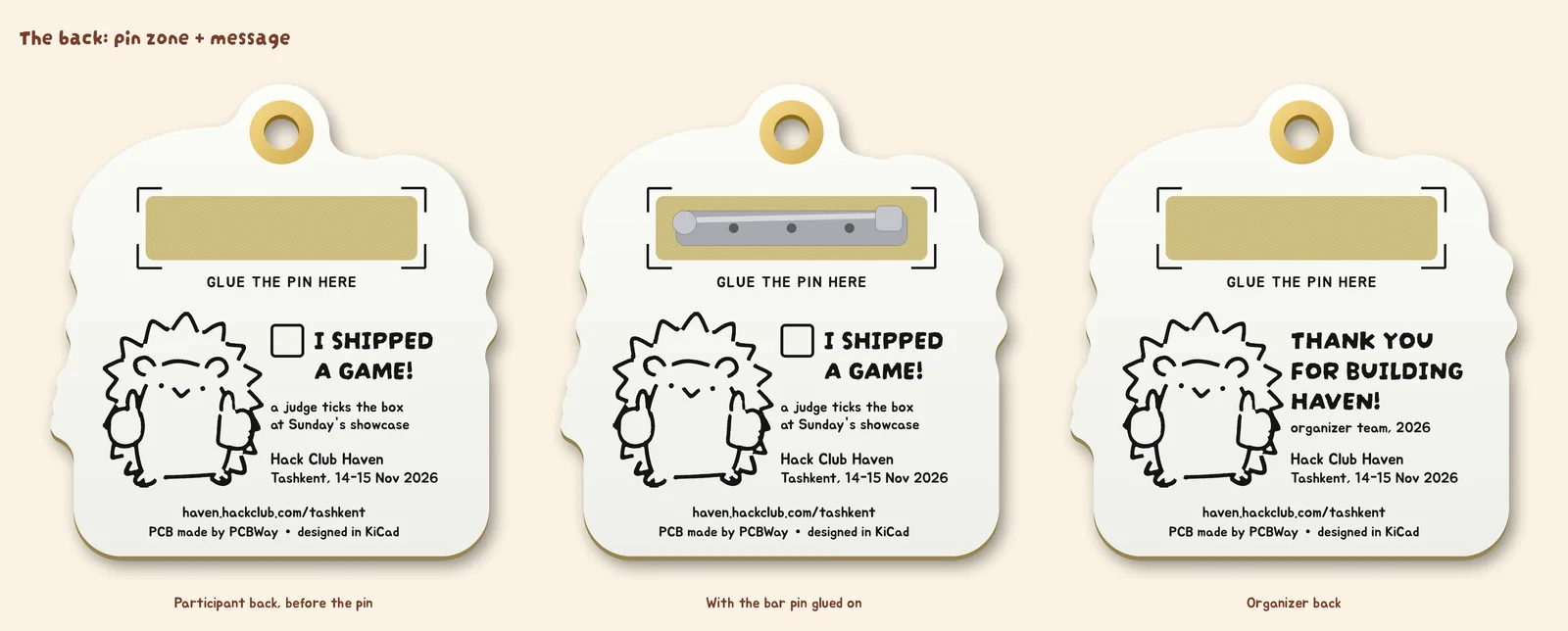

Figure 7.Both backs
Plan B badges

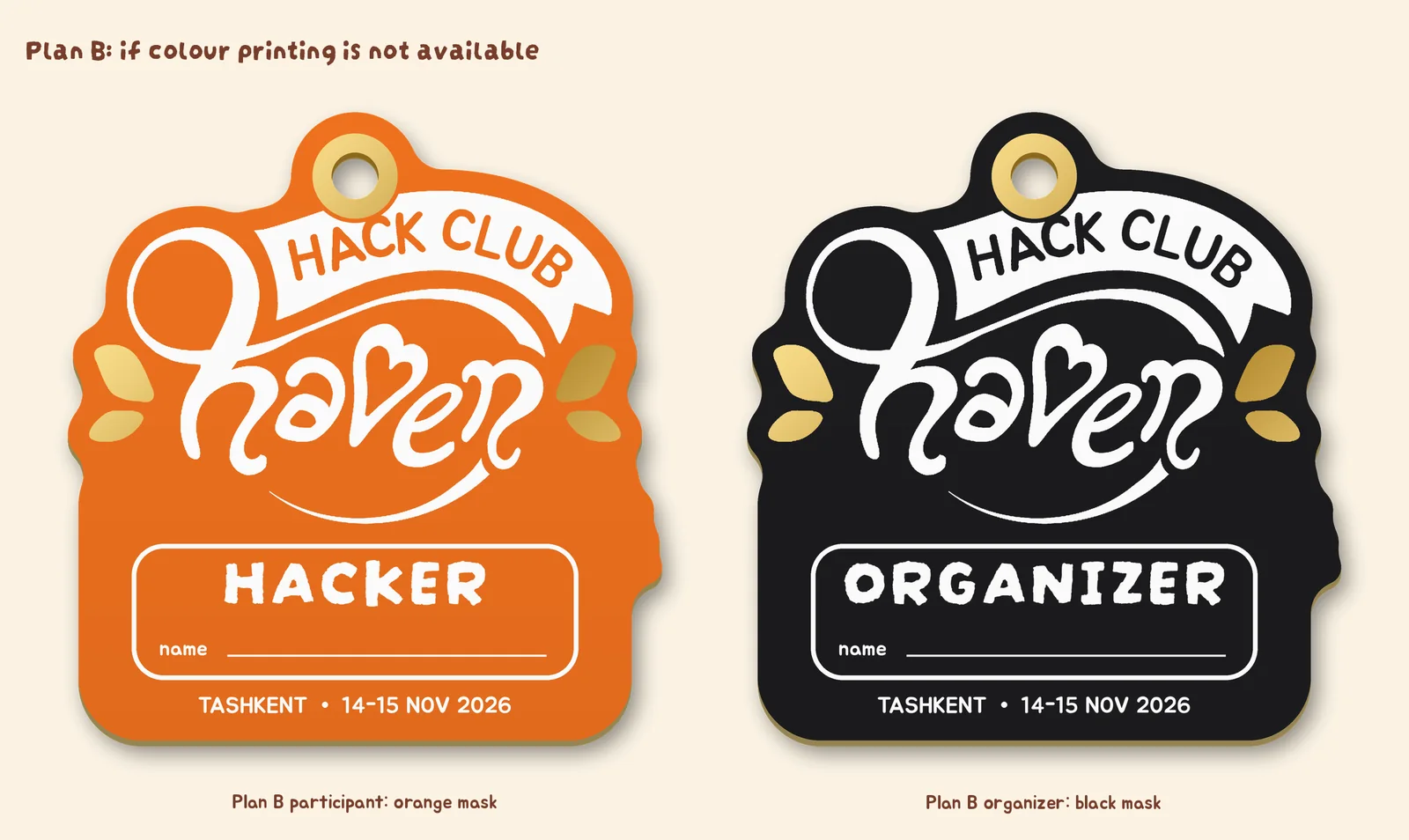

Figure 8.Plan B design

5Technical Documents

AN-05-D1Repo notesFolder layout and the key numbers in KiCad.Read →

6Design Files

7Source

The Haven logo and hedgehog are Hack Club's.
